01Reference
Colour
Provide the agreed colour reference and approve a physical sample when colour matching is critical.
Powder-coated parts in the colour you selected.
Add an available colour and gloss grade to an eligible part, with preparation, masking and cure handled in the same production order.

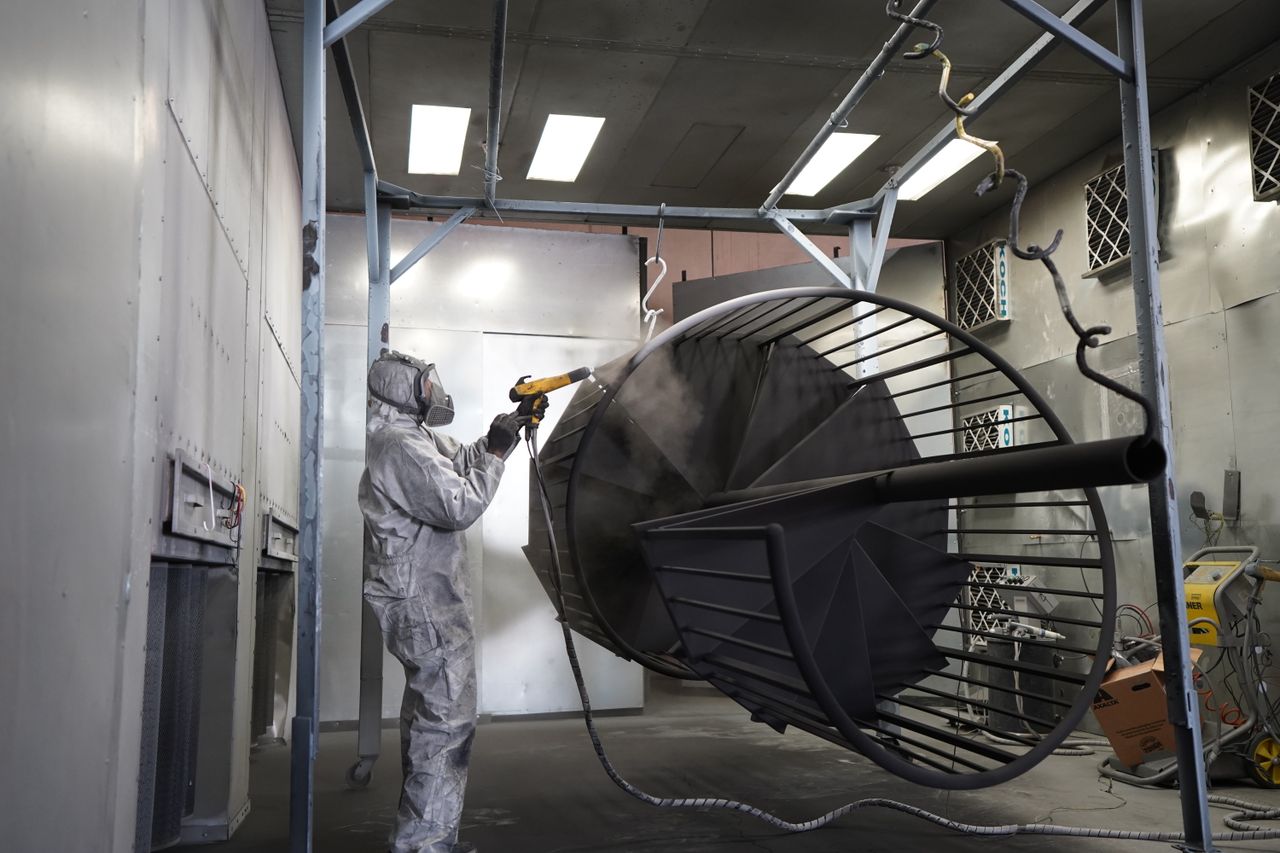

Dry powderElectrostatically applied to a grounded part
Oven cureHeat flows and cross-links the coating
Colour + textureAppearance is selected with performance
Prepared surfacePretreatment supports adhesion and durability
Order the finish with the geometry.
Choose powder coating while material, bends, holes and visible faces are still connected to the part. Available colours and gloss grades come from the live production catalogue rather than an open-ended colour promise.
State masking, mating surfaces and exposure requirements before checkout. Geometry with enclosed spaces, mixed materials or heat-sensitive components may require review before coating is accepted.
Identify the intended environment, appearance and any masked threads, electrical contacts, grounding points or close-tolerance interfaces.
Define the finish customers will see and the environment it must survive.
02Sheen
Gloss
Matt, satin and gloss appearances reflect light differently and can change how colour is perceived.
03Surface
Texture
Smooth and structured finishes have different appearance, cleanability and ability to disguise substrate variation.
04Performance
Exposure
Indoor, exterior, marine and chemical environments require different pretreatments and powder systems.
Available materials for powder coating.
Loading current material availability…
Available colours and gloss grades are confirmed during part configuration.
Confirm preparation, masking and cure requirements.
Surface
Prepare
Clean and pretreat the substrate according to material and required corrosion performance.
Coverage
Apply
Electrostatically deposit powder while managing recesses, edges, hanging and masking.
Film
Cure
Heat the part for the specified time and metal temperature so the coating develops correctly.
From bare part to a cured, handled finish.
Define the system
Confirm substrate, exposure, colour, gloss, texture and performance expectations.
Prepare and mask
Clean the surface and protect threads, contacts and no-coat interfaces.
Coat and cure
Apply the selected powder and cure it to the approved product schedule.
Inspect and pack
Review coverage and agreed appearance before protecting the finish for shipment.
Ordering a powder-coated part
Which colours can I choose?
Available colours are shown in the configurator for eligible materials. If colour, gloss or texture is critical, include the complete finish requirement.
Which areas should remain uncoated?
Identify threads, earth points, bearing surfaces and close fits that require masking or another post-process treatment.
Can I order an exterior coating?
State the exposure and expected service condition. Metalldel confirms whether the available pretreatment and powder system are suitable.
Can coating follow cutting and bending in one order?
Yes, when the part is eligible. Configure the colour and coating after the geometry and material have been accepted.
Specify the finish as a system, not only a colour.
Configure an available coating or send the colour, exposure and masking requirements for review.
